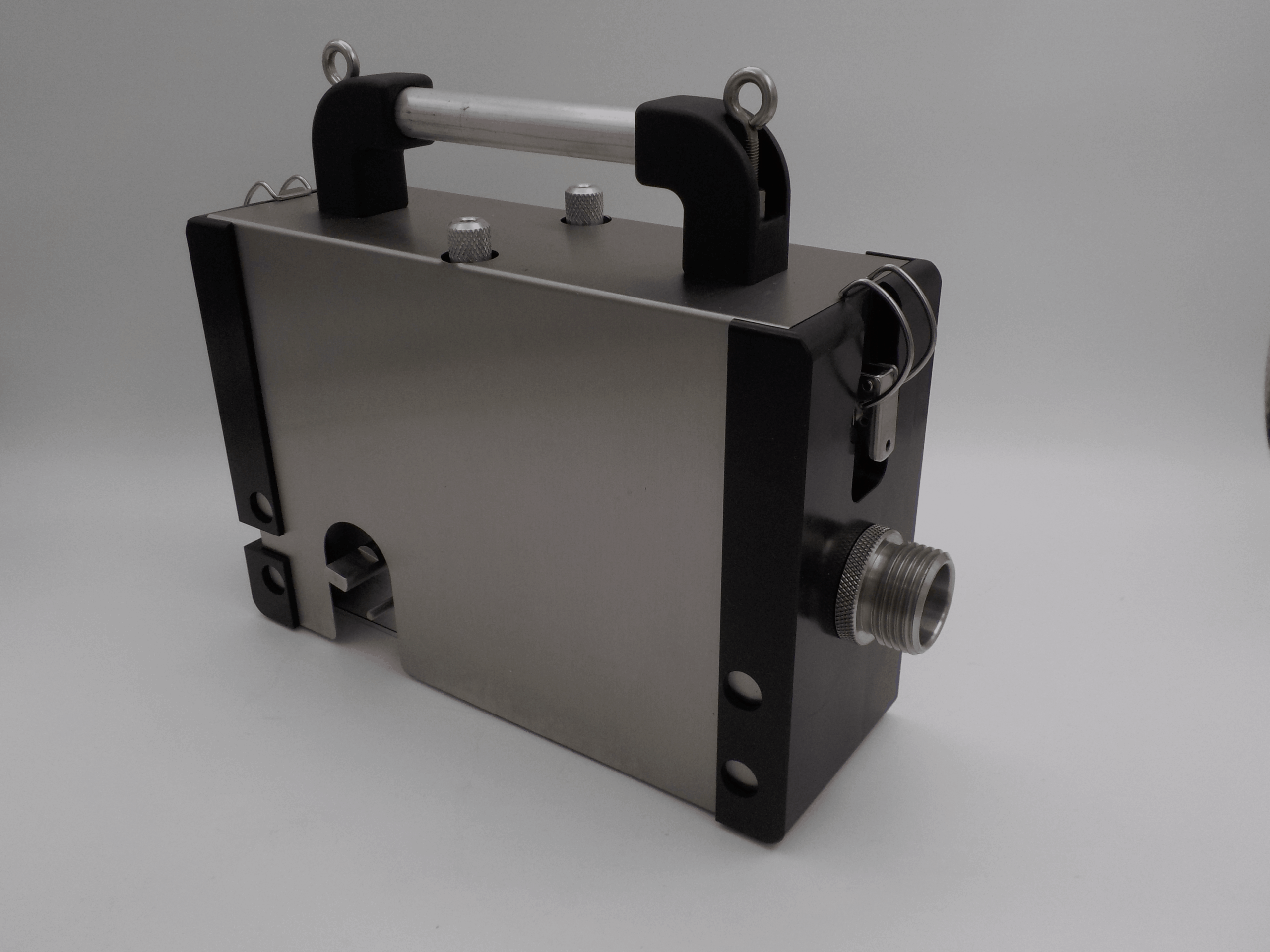

1-XLTC Drive Unit
The Peinemann Single Lance Feeder (1-XLTC) from the XLTC Series is a lightweight and modular piece of tube cleaning equipment suitable for operating in tight and challenging operating areas. The 1-XLTX is built with lightweight but strong and durable components. Its versatile design works with a wide range of hose sizes, and the modular components enable easy cartridge replacement.
This product only includes the 1-XLTC Drive Unit, tracks and a few other items. Make sure to check the 1-XLTC setups for the other required items to complete your configuration.
Part Number: 210000
The Peinemann Single Lance Feeder (1-XLTC) is a lightweight and modular equipment that is ideal for operating in tight and challenging areas. Its lightweight yet strong and durable components make it a reliable choice for various tube and pipe cleaning applications. The 1-XLTC features a versatile design that is compatible with a wide range of hose sizes, and its modular components make cartridge replacement easy. The XLTC is also quick to assemble and requires minimal maintenance. This ATEX-approved equipment is assembled in the Netherlands, ensuring its high quality.
The 1-XLTC is available in five setups. The 1-XLTC + Orion Indexer and 1-XLTC + Dome Cleaner Setups are designed for seamless integration with the Orion Indexer and Dome Cleaner, respectively. In these two setups, the 1-XLTC is controlled using a 3-Way Remote Control. The 1-XLTC Handheld Setup features a handheld motor, providing a powerful solution for tube cleaning by hand. Furthermore, the 1-XLTC Pipe Cleaning Setup setup is specifically designed for remote-controlled pipe cleaning jobs. There is also a 1-XLTC Pipe Cleaning Setup with two motors. This Double-Motor Pipe Cleaning Setup also enables the 1-XLTC to be used with a Flex Frame, allowing efficient cleaning of large diameter tubes, commonly found in evaporators. For more information on the available setups for the 1-XLTC, please reach out to your local or designated point of sales. Additionally, you can explore the 1-XLTC + Orion Indexer, 1-XLTC + Dome Cleaner, 1-XLTC Handheld and 1-XLTC Pipe Cleaning (standard single-motor) Setups in the Technical Configurator.
This product only includes the 1-XLTC Drive Unit, tracks and a few other items. Make sure to check the various 1-XLTC setups for the other required items to complete the 1-XLTC.
Included with the 1-XLTC Drive Unit:
- Track for 3/2 to 8/4 hoses
- Allen key set
- Air lubricator oil 0.2 L
- Special chain grease fluid 0.2 L
- Users manual
|Length (drive unit)||32.0 cm (12.6 in)|
|Width (drive unit)||38.0 cm (15.0 in)|
|Height (drive unit)||26.0 cm (10.2 in)|
|Weight (drive unit incl. cartridges and motor)||10 kg (22 lb)|
|Hose feed rate||40 – 70 cm/s (15.7 – 27.6 in/s)|
|Max. push/pull force||50 kg (110 lb)|
|Pitch adjustment range||N.a.|
|Motor model||Atlas Copco LZB33-L-AR009-50|
|Max. output||0.38 kW (0.51 hp)|
|Min. air pressure||3.0 bar (43.5 psi)|
|Operating air pressure||6.3 bar (91.4 psi)|
|Max. air pressure||7.0 bar (101.5 psi)|
|Max. air consumption||14 l/s (29.7 cfm)|
|Stall torque||32 Nm (23.3 ft lb)|
|Vane type||Lubrication free|
|Hose size||3/2 – 8/4|
|Hose outer diameter||8 – 15 mm (0.31 – 0.59 in)|
|Max. hose coupling diameter||20 mm (0.79 in)|
