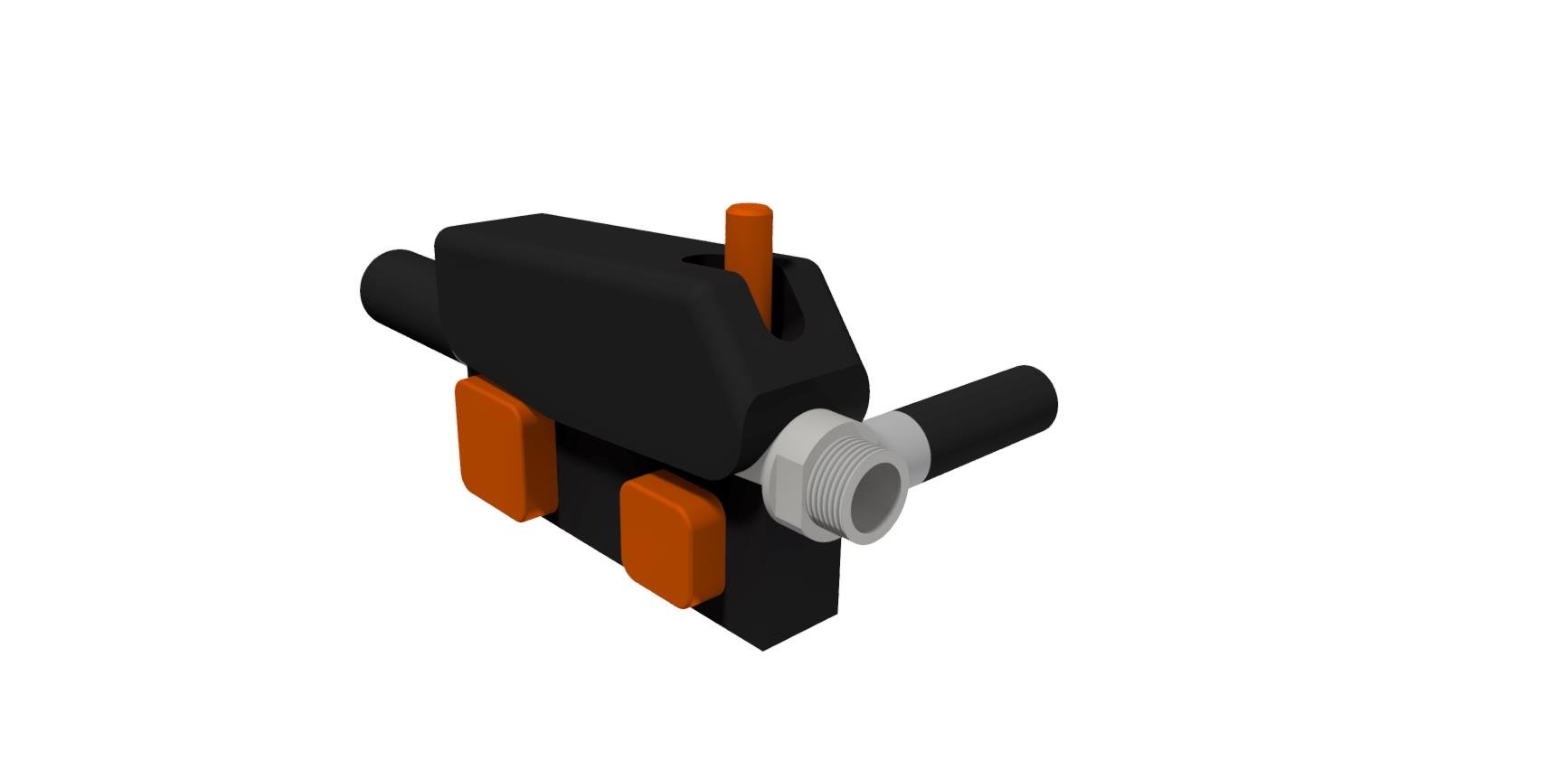

Introducing the Peinemann Single Lance Feeder (1-XS) from the XS Series, the lightest tube feeder in our product range. Weighing just 6.0 kg (13.2 lb), the 1-XS is built with our most reliable components and offers increased strength. It is compatible with hose sizes ranging from 3/2 to 6/2. The 1-XS provides versatile configuration setups, serving as both a handheld feeder and a remote-controlled feeder when used with the Orion Indexer or Dome Cleaner.

This product only includes the 1-XS Drive Unit, tracks and a few other items. Make sure to check the 1-XS Handheld or 1-XS + Orion Indexer Setup for the other required items to complete the 1-XS.

Part Number: 810000

Description

The Peinemann Single Lance Feeder (1-XS) from the XS Series is the lightest tube feeder in the Peinemann product range. The 1-XS is built with our most-proven components and weighs only 6.0 kg (13.2 lb) while stronger than ever before. It comes with an ultra-light carbon fiber drive unit and corrosion-resistant self-lubricating chains. The modular design enables tool-free parts replacement and easy maintenance. In addition, its compact design allows the 1-XS to be operated in tight and challenging spaces.

The 1-XS offers versatile configuration options to suit different setups. It can be utilized as a handheld feeder or as a remote-controlled feeder when combined with the Orion Indexer or Dome Cleaner.

Included with the 1-XS Drive Unit

  • Track for 3/2 to 6/2 hoses
  • Allen key set
  • Air lubricator oil 0.2 L
  • Special chain grease fluid 0.2 L
  • Users manual

Specifications 1-XS

General
Length (drive unit) 28.0 cm (11.0 in)
Width (drive unit) 30.0 cm (11.8 in)
Height (drive unit) 19.0 cm (7.5 in)
Weight (drive unit incl. motor) 6.0 kg (13.2 lb)
Hose feed rate 40 – 70 cm/s (15.7 – 27.6 in/s)
Max. push/pull force 50 kg (110 lb)
Pitch adjustment range N.a.
Motor
Motor model Atlas Copco LZB33-L-AR009-001
Max. output 0.62 kW (0.83 hp) standard motor
Min. air pressure 3.0 bar (43.5 psi)
Operating air pressure 6.3 bar (91.4 psi)
Max. air pressure 7.0 bar (101.5 psi)
Max. air consumption 14 l/s (29.7 cfm)
Stall torque 32 Nm (23.3 ft lb)
Vane type Lubrication free
Hose specifications
Hose size 3/2 – 6/2
Hose outer diameter 7 – 11.5 mm (0.28 – 0.45 in)
Max. hose coupling diameter 27 mm (1.06 in)

Specification sheets
