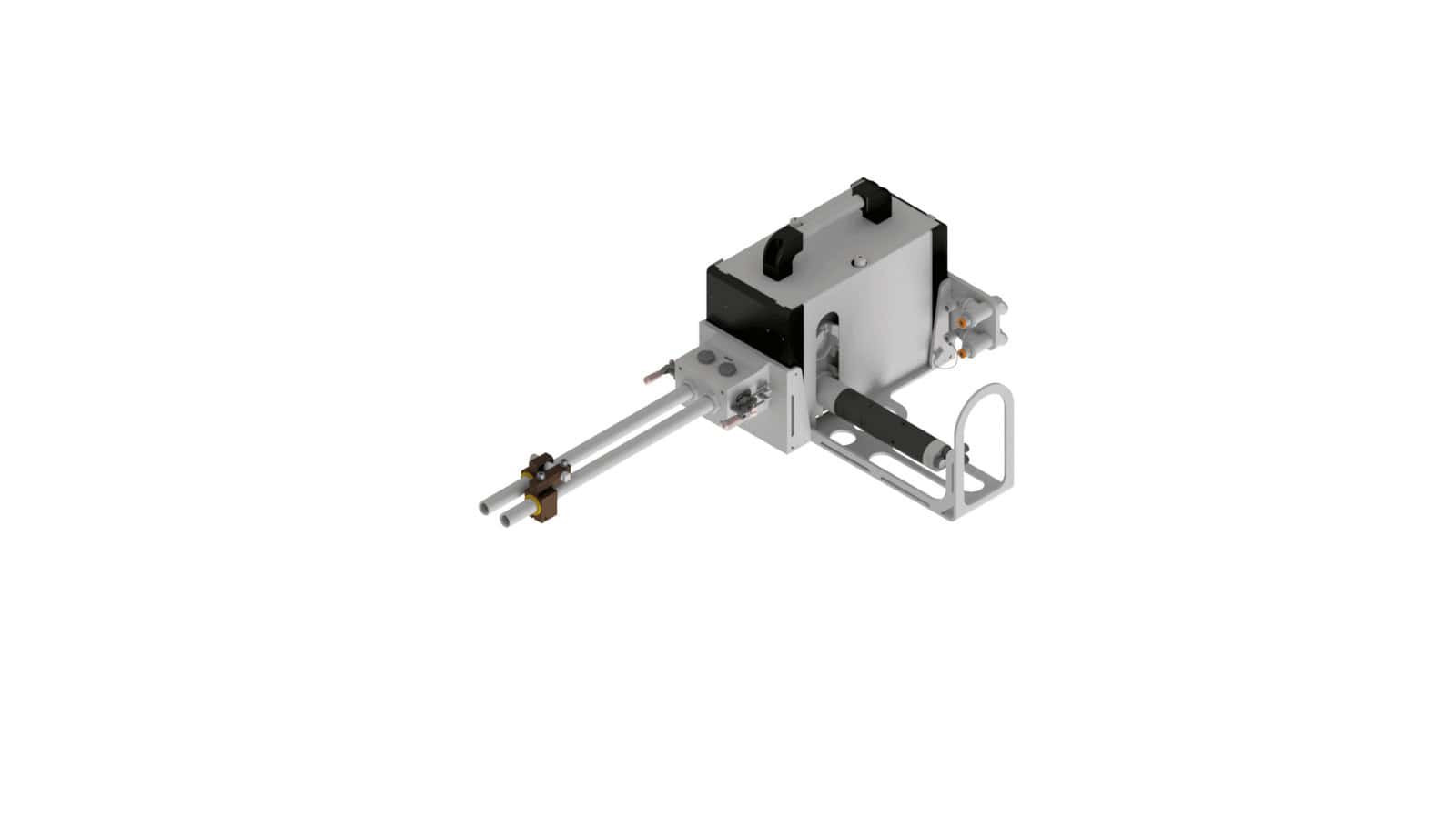

2-XLTC Drive unit

  1. POWERHOUSE

  2. VERSATILE

  3. MODULAR DESIGN

The Peinemann Dual Lance Feeder (2-XLTC) from the XLTC series is the ultimate solution for powerful and reliable tube cleaning operations. With its Atlas Copco motor providing up to 50 kg (110 lb) push/pull force, it can handle the toughest tube cleaning jobs with ease. The robust and durable drive unit ensures long-lasting performance even under heavy use.

This product only includes the 2-XLTC Drive Unit, tracks and a few other items. Make sure to check the 2-XLTC setups for the other required items to complete your configuration.

Part Number: 520000

Description

If you’re in need of powerful and reliable equipment for challenging tube cleaning operations, the Peinemann Dual Lance Feeder (2-XLTC) from the XLTC series is an excellent choice. This powerhouse is equipped with an Atlas Copco motor that provides up to 50 kg (110 lb) push/pull force, making it capable of handling even the toughest tube cleaning jobs. The drive unit is also designed to be robust and durable, ensuring that it can withstand heavy use over time.

One of the main benefits of the 2-XLTC is its versatile design, which allows it to work with a wide range of hose sizes. This makes it an ideal choice for a variety of tube cleaning applications. Additionally, the modular components of the 2-XLTC enable quick cartridge replacement and easy maintenance, ensuring that downtime is kept to a minimum.

Another advantage of the 2-XLTC is its flexibility. With the ability to easily convert into a single lance pipe feeder (X-XLTC) using a conversion kit, this equipment provides even more versatility for your cleaning operations. This means that it can adapt to different requirements as needed, providing greater value for money.

This product only includes the 2-XLTC Drive Unit, tracks and a few other items. Make sure to check the various 2-XLTC setups for the other required items to complete the 2-XLTC.

Included with the 2-XLTC Drive Unit:

  • Track for 3/2 to 8/4 hoses (2 pieces)
  • Allen key set
  • Air lubricator oil 0.2 L
  • Special chain grease fluid 0.2 L
  • Users manual

Specifications 2-XLTC

General
Length (drive unit) 35.5 cm (14.0 in)
Width (drive unit) 44.5 cm (17.5 in)
Height (drive unit) 30.0 cm (11.8 in)
Weight (drive unit incl. cartridges and mo­tor) 21 kg (46 lb)
Hose feed rate 40 – 70 cm/s (15.7 – 27.6 in/s)
Max. push/pull force 50 kg (110 lb)
Pitch adjustment range 25 – 53 mm (0.98 – 2.09 in)
Motor
Motor model Atlas Copco LZB-33-L-AR009-50
Max. output 0.38 kW (0.51 hp)
Min. air pressure 3.0 bar (43.5 psi)
Operating air pressure 6.3 bar (91.4 psi)
Max. air pressure 7.0 bar (101.5 psi)
Max. air consumption 14 l/s (29.7 cfm)
Stall torque 32 Nm (23.3 ft lb)
Vane type Lubrication free
Hose specifications
Hose size 3/2 – 8/4
Hose outer diameter 8 – 15 mm (0.31 – 0.59 in)
Max. hose coupling diameter 21 mm (0.83 in)

Specification sheets

Download all related specification sheets:
