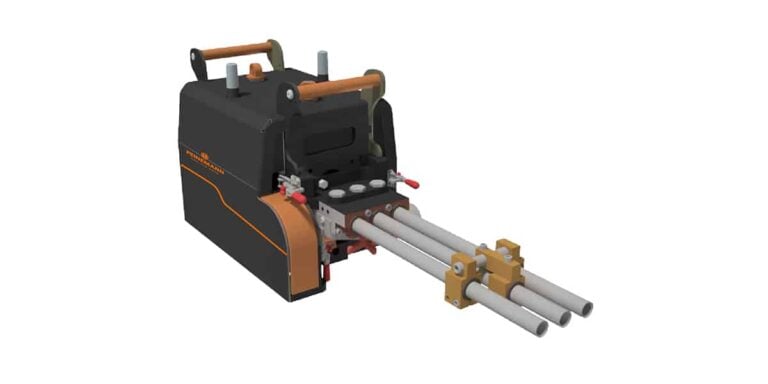

3-TLX Conversion Kit

3-TLX Conversion Kit

  1. Only minimal components need to be changed to allow for the larger design hoses

The TLX only requires minimal changes to have it rebuild in another versions of the TLX Series. This conversion kit includes all the components required for this transformation.

One "3-TLX Conversion Kit" contains the following items:

3-TLX Conversion Kit
3-TLX Conversion Kit

Part Number: 710206S

Hose Catcher 3-TLX Rolodex 4/2, 5/2, 6/2, 8/2 (Ø 0.335, 0.394, 0.472, 0.551 in)
Hose Catcher 3-TLX Rolodex 4/2, 5/2, 6/2, 8/2 (Ø 0.335, 0.394, 0.472, 0.551 in)

Part Number: 710018

Optional
Hose Catcher 3-TLX Rolodex 4/4, 5/4, 6/4, 8/4 (Ø 0.433, 0.453, 0.512, 0.610 in)
Hose Catcher 3-TLX Rolodex 4/4, 5/4, 6/4, 8/4 (Ø 0.433, 0.453, 0.512, 0.610 in)

Part Number: 710018A

Optional
End Stop 3/2, Ø 7.5 mm / 0.295"
End Stop 3/2, Ø 7.5 mm / 0.295"

Part Number: 110021SA

Optional
End Stop 4/2, Ø 8.0 mm / 0.315" (Small Version)
End Stop 4/2, Ø 8.0 mm / 0.315" (Small Version)

Part Number: 110021S

Optional
End Stop 5/2 (4/4), 9.5 mm / 0.374" (Small Version)
End Stop 5/2 (4/4), 9.5 mm / 0.374" (Small Version)

Part Number: 110022S

Optional
End Stop 6/2 (5/4), Ø 11.5 mm / 0.453" (Small Version)
End Stop 6/2 (5/4), Ø 11.5 mm / 0.453" (Small Version)

Part Number: 110023S

Optional
End Stop 8/2, Ø 13.5 mm / 0.532"
End Stop 8/2, Ø 13.5 mm / 0.532"

Part Number: 110024s

Optional
End Stop 6/4, Ø 12.5 mm / 0.492"
End Stop 6/4, Ø 12.5 mm / 0.492"

Part Number: 110026s

Optional
End Stop 8/4, Ø 14.5 mm / 0.571"
End Stop 8/4, Ø 14.5 mm / 0.571"

Part Number: 110025s

Optional

Description

The TLX only requires minimal changes to have it rebuild in another versions of the TLX Series. This conversion kit includes all the components required for this transformation.

Specification sheets

Download all related specification sheets:
