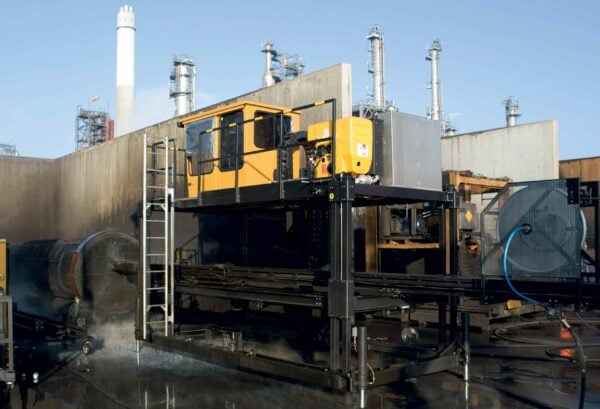

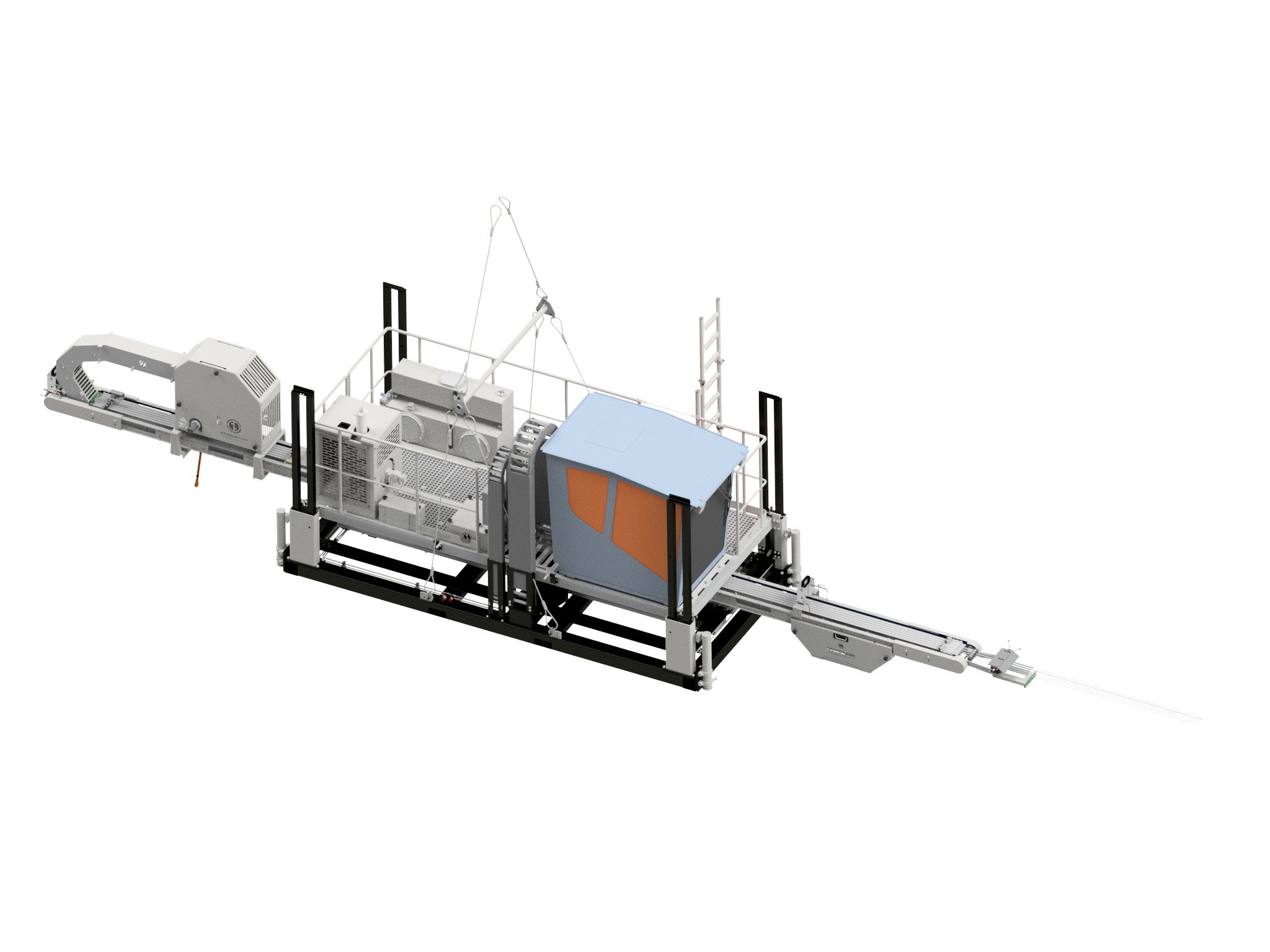

IBC-5 (Inside Bundle Cleaner)
Hydraulically Driven which copes with the huge reaction forces involved
Great production capacity thanks to cleaning up with up to 5 rigid lances at a time
Capable of pressures up to 1500 Bar / 22000 PSI
Can be lifted with the help of forklift slots or via the standard supplied Spreader Bar
Outriggers will allow for precise and horizontal positioning of the IBC
Easy controls within the cabin which can also accommodate potential bundle rollers
Easy positioning of the lance bed including a huge work area
Limited pressure loss thanks to the individual feed hoses of 8mm, for each rigid lance.
A true workhorse that gets the tube cleaning work done in even the most demanding circumstances.
Specifically developed for cleaning a great number of tubes, in the shortest possible time, at either a wash pad or designated cleaning bay.
The rigid lances will accomodate huge flows (up to 1500 Bar / 22000 PSI) which will contribute to a great production rate.
Being able to control the IBC via the comforts of a cabin will add both to the safety of the operator as well having a great viewing point of the bundle.
|Dimensions||L x W x H = 1150 x 220 x 234 cm|
|Min. height lances||70 cm|
|Max. height lances||270 cm|
|Max horizontal movement of lances||167 cm|
|Min. working height||60 cm|
|Max. working height||210 cm|
|Max. working length||950 cm|
|Lance speed||0-2 m/sec|
|Lance bed lateral movement||60 cm|
|Recommended water pressure||1400 bar (20.000 psi)|
|Recommended flow||180 – 200 L / (min)|
|Outriggers||50 cm standard, optional 90 cm|
|Pitch||22 – 45 mm|
|Forward thrust||120 kg/lance (standard), max. 500 kg/lance|
|Pump (gear)||19cc + 8cc|
|Engine||Silent pack HATZ diesel Mod. 2L41C|
|Cubic capacity||1,716cc (2 cylinders)|
|Horse power||33 Hp at 3.000 RPM|
|L/R travel||170 cm|
