1-XS Handheld Setup
-
LIGHTWEIGHT COMPONENTS
-
VERSATILE
-
MODULAR DESIGN

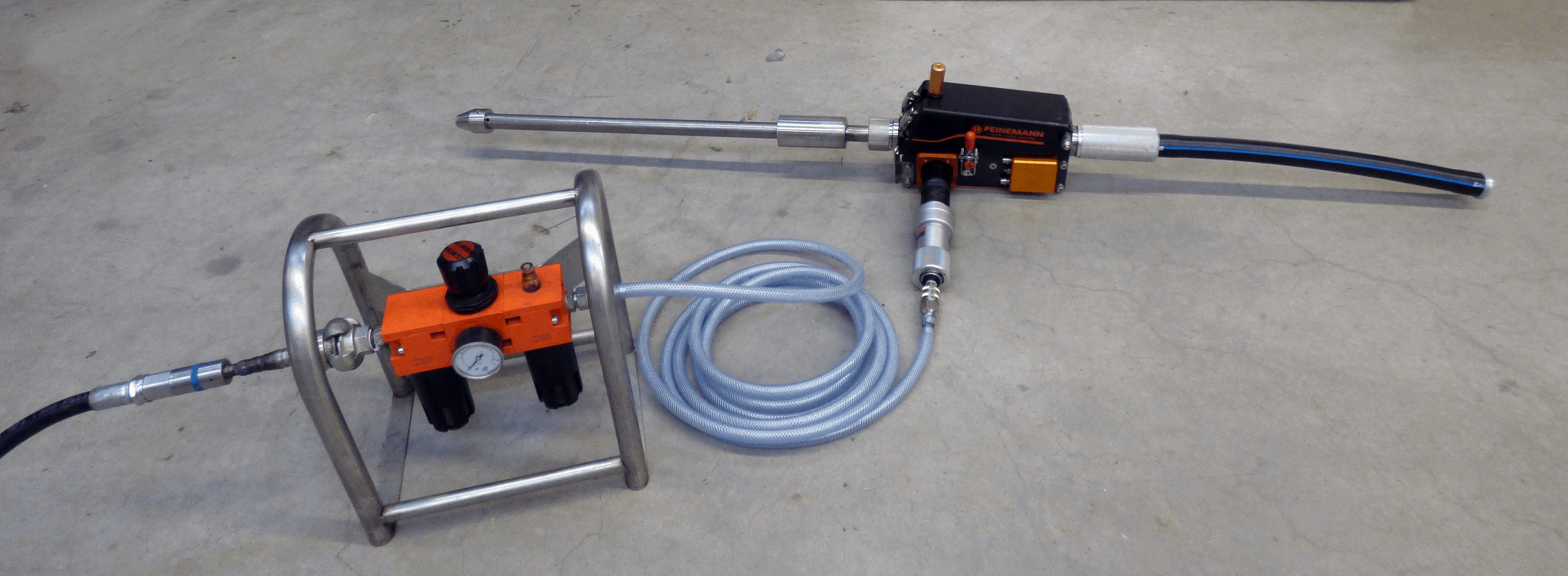

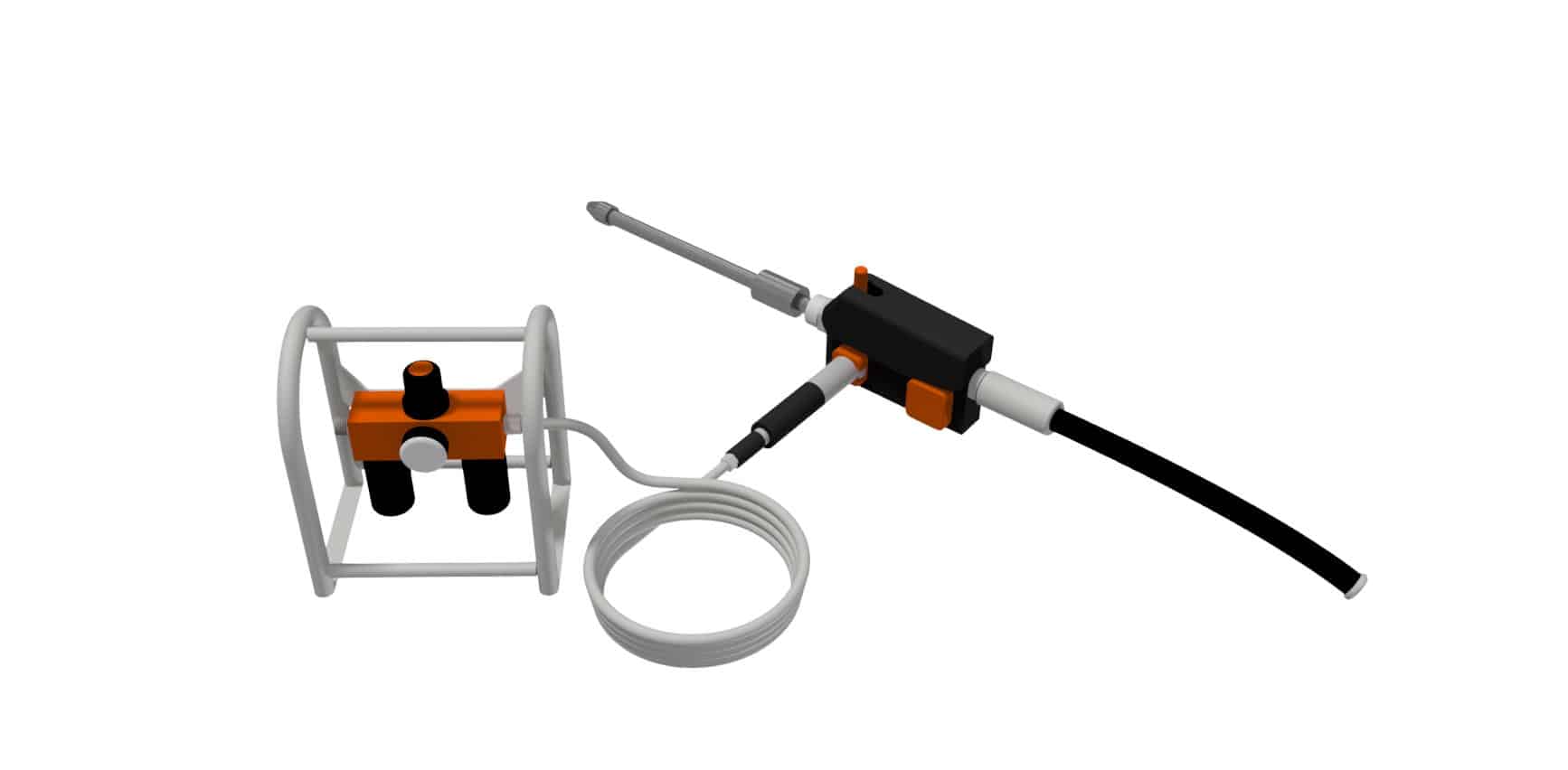

The 1-XS Handheld Setup includes the lightweight Peinemann 1-XS with a handheld air motor, FRL unit and more. Weighing only 6.0 kg (13.2 lb), the 1-XS is the lightest feeder in its range. Its modular design allows for easy maintenance and tool-free parts replacement. This versatile feeder adapts effortlessly to various tube and pipe cleaning configurations.
One "1-XS Handheld Setup" contains the following items:
Description
Introducing the 1-XS Handheld Setup, the ultimate lightweight cleaning solution featuring the innovative Peinemann 1-XS feeder with handheld air motor, a comprehensive FRL unit and a range of other essential items.
The Peinemann Single Lance Feeder from the XS Series (1-XS) is the lightest feeder in the cleaning product range, weighing just 6.0 kg (13.2 lb). Its modular design simplifies maintenance and enables easy tool-free parts replacement, optimizing your cleaning operations. This compact and versatile feeder can be effortlessly tailored to suit various tube and pipe cleaning configurations, providing you with unparalleled flexibility for your specific cleaning needs.
Experience the pinnacle of handheld cleaning technology with the 1-XS Handheld Setup, offering unmatched convenience, precision and performance. Enhance your cleaning operations today and experience the transformative capabilities of this advanced equipment.
Specifications 1-XS
| General | |
| Length (drive unit) | 28.0 cm (11.0 in) |
| Width (drive unit) | 30.0 cm (11.8 in) |
| Height (drive unit) | 19.0 cm (7.5 in) |
| Weight (drive unit incl. motor) | 6.0 kg (13.2 lb) |
| Hose feed rate | 40 – 70 cm/s (15.7 – 27.6 in/s) |
| Max. push/pull force | 50 kg (110 lb) |
| Pitch adjustment range | N.a. |
| Motor | |
| Motor model | Atlas Copco LZB33-L-AR009-001 |
| Max. output | 0.62 kW (0.83 hp) standard motor |
| Min. air pressure | 3.0 bar (43.5 psi) |
| Operating air pressure | 6.3 bar (91.4 psi) |
| Max. air pressure | 7.0 bar (101.5 psi) |
| Max. air consumption | 14 l/s (29.7 cfm) |
| Stall torque | 32 Nm (23.3 ft lb) |
| Vane type | Lubrication free |
| Hose specifications | |
| Hose size | 3/2 – 6/2 |
| Hose outer diameter | 7 – 11.5 mm (0.28 – 0.45 in) |
| Max. hose coupling diameter | 27 mm (1.06 in) |
