2-XLTC + Flex Frame 3.0 (4″ Rails) Setup
-
EFFICIENT CLEANING
-
HIGHLY VERSATILE
-
EASY TO ASSEMBLE
The 2-XLTC + Flex Frame 3.0 (4″ rails) Setup is an excellent choice for demanding tube cleaning jobs. The Flex Frame 3.0 is equipped with 4″ rails as a standard feature, providing exceptional durability and stability. Moreover, it seamlessly accommodates optional 2.5″ rails, allowing for greater flexibility in rail selection. For enhanced stability when using 2.5″ rails, we highly recommend considering the addition of an extra horizontal rail.
One "2-XLTC + Flex Frame 3.0 (4" Rails) Setup" contains the following items:
Description
The 2-XLTC + Flex Frame 3.0 (4″ rails) Setup is specifically designed to handle tough tube cleaning jobs with ease. Combining the powerful 2-XLTC feeder and durable Flex Frame 3.0, this setup enables efficient cleaning of even the most stubborn contaminants. With its easy transportation, installation, and maintenance, thanks to the modular and durable design of the equipment, you can streamline your cleaning operations effectively.

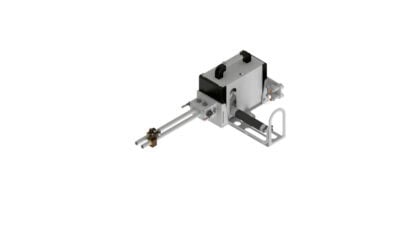

The Peinemann Dual Lance Feeder (2-XLTC) from the XLTC series is an exceptional tube cleaning solution. Equipped with a robust Atlas Copco motor, it delivers an impressive push/pull force of up to 50 kg (110 lb), capable of handling the toughest tube cleaning jobs with ease. The drive unit is engineered to be durable and reliable, ensuring it withstands heavy use over time. The 2-XLTC boasts a versatile design, accommodating a wide range of hose sizes, making it an ideal choice for various tube cleaning applications. The modular components of the 2-XLTC allow for quick cartridge replacement and easy maintenance, minimizing downtime and optimizing productivity. Additionally, its flexibility shines as it can easily convert into a single lance pipe feeder (X-XLTC) using a conversion kit, further expanding its versatility and adaptability for your cleaning operations.
The Peinemann Flex Frame 3.0 complements this setup as the ultimate indexing frame for industrial cleaning operations. With its innovative design and durable components, the Flex Frame offers precise motorized indexing, making it the most efficient and versatile indexing frame in the industry. Its modular features ensure adaptability and compatibility with a wide range of Peinemann cleaning equipment, including the TLX and XLTC. The left/right and up/down assemblies can be easily adjusted to fit optional 2.5″ rails, and the feeder can be mounted on both sides of the up/down assembly, extending the operating range. With lightweight components, the Flex Frame is easily transportable and can be assembled by hand, increasing its portability and ease of use. The Flex Frame delivers accuracy, versatility, and durability, making it the perfect indexing tool for any cleaning operation that demands optimal performance.
Specifications 2-XLTC
| General | |
| Length (drive unit) | 35.5 cm (14.0 in) |
| Width (drive unit) | 44.5 cm (17.5 in) |
| Height (drive unit) | 30.0 cm (11.8 in) |
| Weight (drive unit incl. cartridges and motor) | 21 kg (46 lb) |
| Hose feed rate | 40 – 70 cm/s (15.7 – 27.6 in/s) |
| Max. push/pull force | 50 kg (110 lb) |
| Pitch adjustment range | 25 – 53 mm (0.98 – 2.09 in) |
| Motor | |
| Motor model | Atlas Copco LZB-33-L-AR009-50 |
| Max. output | 0.38 kW (0.51 hp) |
| Min. air pressure | 3.0 bar (43.5 psi) |
| Operating air pressure | 6.3 bar (91.4 psi) |
| Max. air pressure | 7.0 bar (101.5 psi) |
| Max. air consumption | 14 l/s (29.7 cfm) |
| Stall torque | 32 Nm (23.3 ft lb) |
| Vane type | Lubrication free |
| Hose specifications | |
| Hose size | 3/2 – 8/4 |
| Hose outer diameter | 8 – 15 mm (0.31 – 0.59 in) |
| Max. hose coupling diameter | 21 mm (0.83 in) |
Specifications Flex Frame 3.0 (4″ rails)
| Rail length | 182 cm (71.6 in) |
| Rail weight | 8.5 kg (18.7 lb) |
| Left/right assembly width | 60 cm (23.6 in) |
| Left/right assembly height | 35 cm (13.8 in) |
| Left/right assembly depth | 15 cm (5.9 in) |
| Left/right assembly weight | 10.5 kg (23.2 lb) |
| Up/down assembly width | 55 cm (21.7 in) |
| Up/down assembly height | 44 cm (17.3 in) |
| Up/down assembly depth | 37 cm (14.6 in) |
| Up/down assembly weight | 12.5 kg (27.6 lb) |
| Conversion options | The Flex Frame 3.0 (4″ rails) is compatible with a wide range of Peinemann cleaning equipment due to a universal clamp plate. The left/right and up/down assemblies can easily be adjusted to work with 2.5″ rails. Further, various accessories are available to connect the Flex Frame to different types of bundles (horizontal and vertical) and air fin coolers. |
